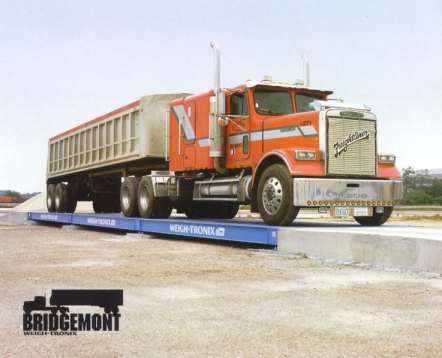

Weigh-Tronix BridgeMont XL Motor Truck Scale

The new BridgeMont XL is available in both steel and concrete in standard lengths of 25, 50, 75, 100, and 125 feet. It is another example of smart design choices with the customer in mind - Design choices that reduce the total cost of truck scale ownership.

In the last decade we've seen the trucks get longer- The standard 70-foot truck scale may not be the best choice any more. Consider the new BridgeMont XL. Its 75-foot model handles any legal-length truck in 47 states. And the XL 3-module design reduces significantly the total cost of truck scale ownership.

Model* Modules Weigh Bars Capacity (tons) Platform

BMS(C) 2611-XL 1 4 35 25' 8" x 11'

BMS(C) 5011-XL 2 6 70 50' 3.25" x 11'

BMS(C) 7511-XL 3 8 100 74' 10.5" x 11'

BMS(C) 10011-XL 4 10 100 99' 5.75" x 11'

BMS(C) 12411-XL 5 12 100 124' 1" x 11'

BMS(C) 2610-XL 1 4 35 25' 8" x 10'

BMS(C) 5010-XL 2 6 70 50' 3.25" x 10'

BMS(C) 7510-XL 3 8 100 74' 10.5" x 10'

BMS(C) 10010-XL 4 10 100 99' 5.75" x 10'

BMS(C) 12410-XL 5 12 100 124' 1" x 10'

*Also available in 12-foot widths. All BridgeMont sizes available in either steel (BMS) or concrete (BMC) models.
