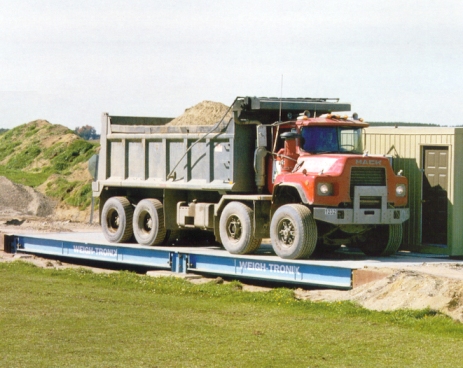

| Weigh-Tronix BridgePort Portable Truck Scale |
For mining, road construction, asphalt installations, timber operations, construction,
quarries-Anywhere there is an immediate need for a portable truck scale.
| Specifications |
|
Dual Tandem Axle Rating: 80,000 lb "r" factor rating: 2.35 Concentrated Load Capacity (CLC): 40 ton Weight sensors: Four 50K Weigh Bars per module Top plate: 3/8" checkered top plate Profile: 19 inches Finish: Sandblasted steel components with epoxy primer and alkyd top coat.
Junction boxes: Stainless steel NEMA 4Approvals: NTEP Surge Voltage Protection: Standard Cable: Stainless steel sheathed |
|
Options |
|
Battery operated or AC powered instrumentation 14' winged bulkheads Welded guide rails Steel gap cover (t-strips) Accessory box for storage Guide rails 11 and 12-foot platform widths |
| Model | Capacity | Platform Length | Est. Ship. Wt. |
| BPV-2010-60T | 120,000 | 20' | 12,800 |
| BPV-2510-60T | 120,000 | 25' | 14,200 |
| BPV-3010-60T | 120,000 | 30' | 17,550 |
| BPV-3510-60T | 120,000 | 35' | 21,158 |
| BPV-4010-100T | 200,000 | 20' + 20' | 25,600 |
| BPV-5010-100T | 200,000 | 25' + 25' | 28,400 |
| BPV-6010-100T | 200,000 | 30' + 30' | 35,100 |
| BPV-7010-100T | 200,000 | 35' + 35' | 42,300 |
| BPV-7510-100T | 200,000 | 25' + 25' + 25' | 42,600 |
| BPV-8010-100T | 200,000 | 25' + 25' + 30' | 45,950 |
| BPV-9010-100T | 200,000 | 30' + 30' + 30' | 52,650 |
| BPV-10510-100T | 200,000 | 35' + 35' + 35' | 63,450 |
