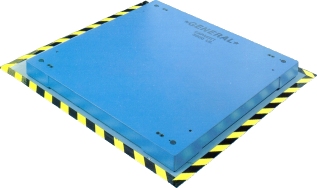

General Platform Scale Base


SOLID PRECISION ACCURACY
All WEIGH DECKS are calibrated to 1 part in 5,000 and NTEP certified (C.o.C. #91-100).

100% END/SIDE LOAD CAPACITY
Double capacity load cells provide for safe forklift use from all sides and allow for other highly concentrated loads. Load cell capacity is 200% of scale capacity. In addition, mechanical stops protect each load cell from accidental overloads.

5,000 lb scale contains four load cells of 2,500 lb capacity each so that each side has 5,000 lb drive-on capacity.

QUICK and EASY SETUP
Every WEIGH DECK is factory calibrated and thus ready for use. Also note these important features:
  • Top access corner leveling
  • Top access to trim/summing board
  • Four (4) load cell overload stops
  • 20 ft. load cell cable
  • NEMA 4X summing box

    SIZES and CAPACITIES
    Sizes
    36" x 36" x 3.5" - 48" x 48" x 3.5" - 48" x 60" x 3.5" - 48" x 72" x 3.5" - 60" x 60" 3.5"

    Capacities (Pounds)
    1,000 - 2,000 - 3,000 - 5,000 - 8,000 - 10,000

    OPTIONS and ACCESSORIES
  • Treadplate (no charge)
  • Drive-on ramps
  • Portable ramps
  • Anchor plates
  • Bump ramps
  • Custom pit frames

    SPECIFICATIONS
    Contruction material                 A36 carbon steel
    Surface finish                 Duco polyurethane
    Leveling load feet                 3" dia. Elastomer shock absorbing
    Load cells                 4 NEMA 6/IP67 sealed shear beams
    mV/V output                 1.20 - 2.00 mV/V nominal
    Rated excitation                 10 V DC (15 V DC max.)
    Bridge resistance                 350 ohm
    H44 operating range                 14 degrees F to 104 degrees F
    Cable length                 20 ft. OSHA yellow

    2 YEAR LIMITED WARRANTY
